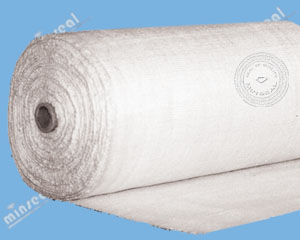

CeraTex® Ceramic Fiber Cloth
CeraTex® Cloth is a woven fabric that is made from high purity alumino-silicate based ceramic fiber reinforced with high temperature fiberglass. The product is white and odorless, suitable for high temperature applications up to 2300°F.
Characteristics and Specs
Lightweight, low thermal conductivity, high temperature stability, excellent handling strength, low heat storage, thermal shock resistant, fire and flame proof, chemical resistant, compatable with most corrosive chemicals, commonly used acid and alkali (exceptions are hydrofluoric, phosphoric acids and concentrated alkalis).
Fiber Diameter: 3 – 4.5 microns
Fiber Shrinkage (1800°F, 3h): < 3.5%
Working Temperature : 1,800 °F. for Continuous Use, 2300 °F Maximum
Specific Heat (@2000°F): 0.27 Btu/lb °F
Typical Applications:
- Safety and protective insulation cover, curtains, blanket, welding blanket
- Expansion joint fabric
- Insulation wrapping material for cable, wire, pipe, exhaust, etc.
- Gaskets, tadpole gasket and other high temperature insulation seal
Product Styles:
3110G CeraTex® Cloth
3110W CeraTex® Cloth with Wire Insert
Product Sizes and Variants
Thickness: 1/16", 1/8"; Width: 39.4" (1 meter); Length per roll: 33 yard
Also avaialble: heat cleaned/treated, vermiculite coated, aluminum foil back
Heat Cleaning: The products contain certain amount of organic binder materials(necessary for fiber carding process). The organic binder will burn out at lower temperature and generate smokes. This will not affect the ceramic fiber properties. After the organic binder is burned out the product will turn white again. In applications where smoke is prohibited, the product should be heat cleaned or treated first before it is put into use.
